Name: CJAC AC1412-2, AC1416-2, AC1420-2, AC1425-2 AC Series Shock Absorber
Brand: Airwolf Automation
SKU: AC1412-2, AC1416-2, AC1420-2, AC1425-2
Price: 2.00 USD
Availability: InStock

Rumah Produk Pneumatik udara silinder

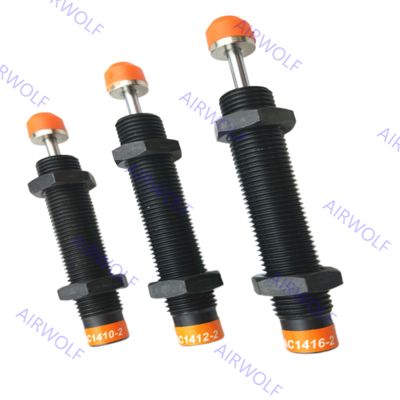

CJAC AC1412-2, AC1416-2, AC1420-2, AC1425-2 AC Series Shock Absorber

Detail produk:

Tempat asal:	Taiwan, Cina, Cina
Nama merek:	CJAC, AIRWOLF or OEM
Nomor model:	AC1412-2, AC1416-2, AC1420-2, AC1425-2

Syarat-syarat pembayaran & pengiriman:

Kuantitas min Order:	1 buah
Harga:	2-3USD
Kemasan rincian:	Kotak, Karton, Palet, Kantong plastik
Waktu pengiriman:	1-7 hari kerja
Syarat-syarat pembayaran:	T/T, Western Union, PAYPAL
Menyediakan kemampuan:	1000 pcs per minggu

Kontak

Detil Deskripsi produk

Kode barang:	AC1412-2, AC1416-2, AC1420-2, AC1425-2	Bahan pipa luar:	AISI1215 dan STKM11A teroksidasi hitam, pengobatan pelapisan nikel
Bahan Batang Piston:	pengobatan pelapisan kromium keras	Kisaran suhu kerja:	-10~+80℃
Fungsi:	Perlindungan Dampak, Penyerapan Guncangan	Rentang Kecepatan:	1,5 m/dtk
Menyoroti:	AC Series shock absorber for pneumatic cylinders , Pneumatic cylinder shock absorber AC1412-2 , AC1425-2 shock absorber with warranty

CJAC AC1412-2, AC1416-2, AC1420-2, AC1425-2 AC Series Shock Absorber

The CJAC AC Series is a line of industrial shock absorbers, or oil pressure buffers, engineered to provide automatic compensation for kinetic energy in machinery. Designed for fixed constructions, these devices utilize specialized oil holes and alignment to maintain linear deceleration across a wide range of applications, from high-speed light loads to low-speed heavy loads, without requiring manual adjustment. Key technical specifications include an operating temperature range of -10°C to +80°C and an effective impact speed range of 0.1 m/s to 5.0 m/s, depending on the model. They are constructed with durable materials such as an AISI1215 outer pipe with nitriding treatment for rust resistance and a hard chromium-plated piston rod for longevity, making them suitable for harsh industrial environments.

Order Code:

Item Code	A(mm)	B(mm)	D(mm)	F(mm)
AC1412-2	99.2	76	4	67
AC1416-2	122.2	95	4	86
AC1420-2	126.2	95	4	86
AC1425-2	146.2	110	4	101

CJAC AC1412-2, AC1416-2, AC1420-2, AC1425-2 AC Series Shock Absorber

Specifications:

Model	AC1412-2	AC1416-2	AC1420-2	AC1425-2
Stroke(mm)	12	16	20	25
Maximum absorbed energy (Nm(Et))	15	20	24	28
Absorbed energy per hour (Nm(Etc))	30000	35000	36000	37000
Maximum effective weight (Kg(Me))	50	70	90	150
Highest impact speed (m/s(v))	1.5	1.5	1.5	1.5
Thread	*M14x1.0 M14x1.5	*M14x1.0 M14x1.5	M14x1.5	*M14x1.0 M14x1.5

Quality Standards:

The company for the products are brand new original products, no second-hand and refurbished products, or leave a compensable ten and return the full amount , but the buyer due to our purchase of model error is not responsible for returns, another of the company's sales of products enjoy one year from the date of shipment quality assurance , according to the original quality standards , during warranty with product problems , need confirmation testing by the manufacturer , the supplier to be solved , the demand side due to storage , use, poor maintenance caused by lower-quality product , and not raise objections.

Samples:

You can send a sample to customize the products, we have many engineers can help it; If you want a product of mine, but you are not sure if it's what you want, so you can ask for a sample from me, it will be free.

After-sale service:

We can provide a series of after-sale service, such as product introduction, mounting, debugging, technical support and so on.

Competitive Advantage:

Our product features:	Our Services Guarantee:
1) Competitive price	1) Prompt respond (Reply with 24 hours)
2) Good quality	2) Free Samples (Customer pay for the delivery cost)
3) Professional Packaging	3) 1 year warranty
4) Produce according to Customers’ instruction	4) Photos/videos are available during production.
5) None delay shipment	5) Loading inspection, and send loading photos before shipment.

Label:

Kontak Person: Jaren

Tel: 0086-15257858856

Faks: 86-152-57858856
